| 4Ton Double-Cylinder Gantry Car Lift |
 |
|
| Model: |
LD-L02024 |
| Capacity: |
4T |
| Lifting Height: |
>=1700mm |
| N.W.: |
820kg |
| Instroduction: |
Lifting Height:>=1700mm
Rise Time:<50s
Drop Time: >20s
Power of Motor: 2.2kw
Power Supply: 380v/220v

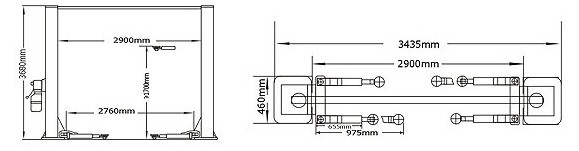

Width of the Rack: 3435mm
Height of the Rack: 3680mm
Width between Pillars :2900mm
Net Weight: 820kg
Packing
|
Package Qty |
Content |
Package Size |
Net Weight |
Gross weight |
20ft conatiner |
40ft conatiner |
|
1 |
Main machine |
3850*500*730 mm |
820kg |
835kg |
12 |
36 |
|
1 |
Power unit |
850*300*300mm |
Double-cylinder gantry hydraulic lift is the product with imported advanced foreign technologies as well as on the basis of many year’s developing and manufacturing experiences of lift line. The design of the lift features simple, reasonable and steady lifting with low noise. It adapts hydraulic power unit and oil nylon roller structure, equipped with a falling prevention support guarantee unit, a lifting arm gyro angle lock unit and a bracket steel rope forced synchronization unit. The lifting tray is low and suitable extensively. The simple maintenance and convenient operation makes it necessary lifting equipment for automobile maintenance and cleaning industry.
|
|
|
