Max. Height of Pad :1860mm
Min. Height of Pad: 119mm
Rise Time:<35s
Power of Motor: 1.5kw

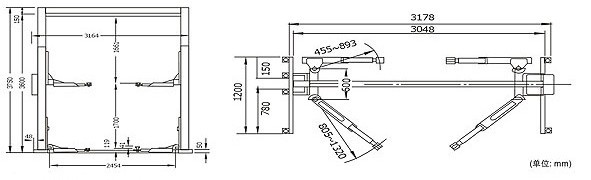

Required Dimension for Base Installation:3700*1200mm
Front Arm:805-1320mm
Rear Arm:805-1320mm
Overall Height:3750mm
Packing
|
Package Qty |
Package Size |
Net Weight |
Gross Weight |
20ft container |
40ft container |
|
1 |
3730*692*745mm |
720kg |
735kg |
8pcs |
24pcs |
With the computer-operated hydraulic system,carriage and cylinder directly integrated together, the lifting machinery balances soudlessly the lifting process. Three gears-adjustable systems make it adaptive to the height of factory. Its security system adopts the mode of automatically electromagnetism locking and releasing, which shows the advanced designing and easy operation.
